LW61ST 投影機 返回

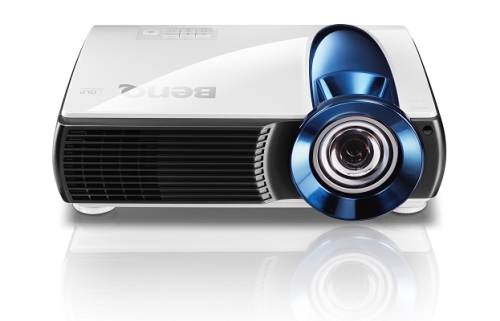

產品圖片
產品規格
| 解析度 | WXGA (1280 x 800) |
| 亮度(流明) | 2000 ANSI |

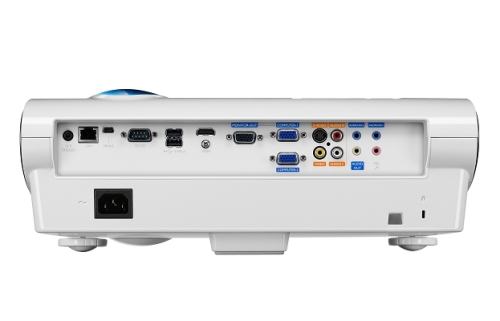

| 輸入 | Computer in (D-sub 15pin) x 2 (shared with Component video) Composite Video in (RCA) x 1 S-Video in (Mini DIN 4pin) x 1 Audio in (Mini Jack) x 2 Audio L/R in (RCA) x 2 Microphone in (Mini Jack) x 1 HDMI V1.3 x 1 LAN (RJ45) x 1 (LAN Control & LAN Display) USB (Type Mini B) x 1 (USB Display & Download & Page up/down) LAN (RJ45) x 1 (LAN Control & LAN Display) USB (Type A) x 2 (USB Reader&Keyboard Mouse&Wireless Dongle) DC 12V Trigger (3.5mm Jack) x 1 RS232 (DB-9pin) x 1 |
| 輸出 | Monitor out (D-sub 15pin) x 1 Audio out (Mini Jack) x 1 Speaker 10W x 2 |
| 3D 支援及相容 | 電腦: 支援120Hz Frame Sequential 3D格式, 最高解像度到WXGA 支援60Hz Top-bottom 3D格式, 最高解像度到SXGA+ 支援60Hz Frame Sequential 3D格式, 最高解像度到WXGA 播放器: 支援60Hz Frame Sequential 3D格式, 最高解像度到480i |
| 對比 | 80000:1 |
| 投射比 | 0.49 (87"@0.91m) |
| 螢幕比例 | Native 16:10 (5 aspect ratio selectable) |
| 燈泡小時數 | 10000-20000 |
| 燈泡瓦數 | 270W |
| 可投畫面大小 | 80"~300" |
| 重量 (kg) | 5.1 |
| 體積 (寬x高x縱深, mm) | 393.5 x 149.6 x 298 |
